Monday, March 13, 2017

Increase disk size of a Linux VM native partition Using GParted

Increase disk size of a Linux VM native partition


Here I explain how to increase disk space for a VMware virtual machine that is using a Linux native partition rather than logical volume manager (LVM).

Firstly we will increase the size of the virtual disk on the virtual machine at the hardware level and then once this is complete we will boot into a GParted live CD and perform the changes required to make use of the additional disk space so that the operating system is able to use it.

Be very careful when following this article as this process has the potential to cause a lot of damage to your data. If you are working with virtual machines make sure you take a snapshot of your virtual machine beforehand, or otherwise have some other form of up to date backup before proceeding. Note that a snapshot must not be taken until after the virtual disk has been increased in the first step below, otherwise you will not be able to increase the disk until it has been removed. It could also be worth cloning the virtual machine first and testing out this method on the clone.

Prerequisites: GParted live CD ISO ,

Download #   http://downloads.sourceforge.net/gparted/gparted-live-0.28.1-1-amd64.iso


I will be working with a VMware virtual machine running Debian Linux,with20gb disk and we will be increasing it by 10gb for a total final size of 30gb.

1. Log in to the linux vm and verify the partitions  using df -h command



It is important to identify that you are actually using a Linux native partition .You can see in the above image /dev/sda1 is listed as “Linux” and it has the ID of 83. The 83 hex code shows that it is a Linux native partition .
Note:- that /dev/sda1 is the partition we will be expanding.
2. Increasing the virtual hard disk
First off we increase the allocated disk space on the virtual machine itself. This is done by right clicking the virtual machine in vSphere, selecting edit settings, and then selecting the hard disk. In the below image I have changed the previously set hard disk of 20gb to 30gb while the virtual machine is up and running. Once complete click OK, this is all that needs to be done in VMware for this process.



Note:- If you are not able to modify the size of the disk, the provisioned size setting is greyed out. This can happen if the virtual machine has a snapshot in place, these will need to be removed prior to making the changes to the disk. Alternatively you may need to shut down the virtual machine if it does not allow you to add or increase disks on the fly, if this is the case shut down and make the change, do not power the virtual machine .



3. Attach the GParted Live CD ISO to vm and boot with that

Right click on the virtual machine in vSphere and select “Edit Settings” to bring up the properties.
Select the CD/DVD Drive and then select your GParted ISO, in this instance I have already uploaded this file to the datastore so I have just clicked the browse button to select it. Make sure that connect at power on is ticked.




4. Change the Boot setting of the VM

Select for the boot options to be presented on the next boot so you can select to boot into the ISO easier. You can also adjust the time to delay the boot so that you have appropriate time to select that you want to boot from CD, in the below image this is set to 5 seconds, and force to boot into bios is enabled so that I can select to boot from CD on next boot.



5. Power on and VM and you have booted to the CD, you will be presented with the following menu, just press enter to boot into GParted Live (Default Settings).


6. Next Screen do-not change anything and just accepted the defaults by pressing enter.



7. You will then be prompted to select a language, pressing enter defaults to English.



8. Next we select the default option 0 by pressing enter as we will be working with the GUI.



9. Once complete you will be presented with the GUI with GParted already open, if it is not already open you can select it from the Desktop icon.



As you can see the original /dev/sda1 partition have 20gb disk and  new unallocated 10gb .Also there is a space between the two is the swap space.
The total /dev/sda disk size of 30gb is also shown.

Here we have to modify  /dev/sda1 to take up that unallocated space, this is not currently possible because swap is in the way so we need to move things around. If you do not have swap in between the partition to be extended and the unallocated space then you will be able to skip down a few steps until you arrive at the image where /dev/sda1 and the unallocated space are next to each other.

10. First we select /dev/sda2 which is the extended partition containing the swap, we want to expand this to include the 10gb of unallocated space.
Select /dev/sda2 and click “Resize/Move” and you will be presented with the following.

Basically you just need to drag the black arrow of /dev/sda2 all the way to the end of the unallocated space and click the Resize/Move button.


After doing this, you should see /dev/sda2 (represented by the blue box) spread out over the unallocated space.


This change and all further changes will not yet be applied, you can see the tasks down the bottom of the GParted interface and these will be applied only once you click the Apply button. Alternatively you can click the Undo button to remove a pending change.

11.  select /dev/sda5 which is the swap partition and select Resize/Move, this will result in the following.


This time rather than expanding the partition, we want to just move swap all the way to the end of the /dev/sda2 space that it is in, this is done by just dragging the box to the end which will then look like this.





Click the Resize/Move button and then a warning may appear informing you that moving a partition might cause your operating system to fail to boot. It also warns that performing this move may take a long time to apply, read the warning then click OK to continue.

The GUI should now look something like the below image, where /dev/sda1 is located right next to /dev/sda2 which contains the unallocated space.



12. Select the /dev/sda2 extended partition and click Resize/Move.


13. Drag this to the right so that only the swap space is contained and the grey unallocated space is freed, click Resize/Move once complete.


Once this is complete the disk will look like below.



14. Now we have /dev/sda1 next to the unallocated space so we are finally ready to expand /dev/sda1. Select /dev/sda1 and click the Resize/Move button.



You will be able to perform this action straight away if you did not have swap in between /dev/sda1 and the unallocated space, the previous steps were to get swap out of the way in GParted.

15. Drag the arrow over so that the unallocated space is then consumed by /dev/sda1 as shown below, then click Resize/Move.



Once this is done the /dev/sda1 partition will now be using the unallocated space that was previously there. All that is left to do is click the apply button which will apply the changes – you will be prompted to confirm with a warning that data loss may occur.
Note :-This may take a while depending on how much of the disk is currently in use and the amount of disk space you are increasing, because a file system check (fsck) is run before the expansion and after it to ensure that there are no issues.

16. Once complete you will see something similar to the below image, you will be able to click close once finished.



17. Reboot the virtual machine and then boot from disk rather than CD, alternatively shut down the virtual machine and unmount the live CD and then power it back on.


18. Once the operating system has booted verify that disk space has expanded correctly. Below you can see that /dev/sda1 is now 30gb in size.
























Sunday, March 12, 2017

Resetting Administrator Password in Windows 2012/2008 VM

Resetting Administrator Password in Windows 2012/2008 VM


If you face any challenge to login to VM after restoreing from backup you may use below method to reset the password of windows 2012/2008  server .

  • Boot from the Micrsoft Windows Server 2012/2008 DVD


  • From the Windows Setup menu, click “Next”.
  • Select “Repair your computer”

  • Under Choose and option, click on “Troubleshoot”.
  • Under Advanced options, click “Command Prompt”.
  • At the command prompt, run the following commands:
    d:cd windows\system32
  • ren Utilman.exe Utilman.exe.old
  • copy cmd.exe Utilman.exe
  • Close the command prompt and then click “Continue”.

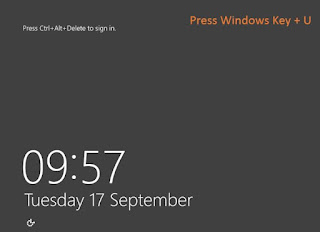

  • The server should now boot and present the logon screen. Here click Windows Key + U.

  • At the prompt you can now change the password, by typing the following command:
    net user administrator "yourpassword"

  • This will set the password for the Administrator user to be "yourpassword " (case sensitive).
Closing the command prompt, you should now be able to log back onto the server using the password you have provided in the last step.

Cleanup Steps

Once you have verified you can log on to the server you will have repeat the steps above and boot using the Windows Server 2008 DVD/ISO and run the command prompt again.
  • Restart your server and once again, boot from the Micrsoft Windows Server 2012 DVD
  • From the Windows Setup menu, click “Next”.
  • Select “Repair your computer”
  • Under Choose and option, click on “Troubleshoot”.
  • Under Advanced options, click “Command Prompt”.
  • At the command prompt, run the following commands:
    d:cd windows\system32
  • ren utilman.exe utilman.exe.newcopy
  • utilman.exe.old utilman.exe
  • Close the command prompt and then click “Continue”.



Note :- Same steps can be used for windows 2008 server VM also .

Tuesday, March 7, 2017

SCHEDULE A TASK IN POWERCLI

SCHEDULE A TASK in POWERCLI



PowerCLI scripts which can be run as scheduled tasks.
There are two ways of doing this really:
1.  Add a line to a start of each of your scripts to make sure it loads the PowerCLI snapin, without which PowerShell will not recognise any of the PowerCLI cmdlets.
Add the following line to the top of each script you will be running as a scheduled task:
add-pssnapin VMware.VimAutomation.Core
In the run box on your scheduled task you can call your script with the following command:
C:\WINDOWS\system32\windowspowershell\v1.0\powershell.exe “& ‘C:\Script.ps1′”
While  troubleshooting this script or amending it you will most likely get an error as your script editor will automatically add the VMware snapin.
2.  This method is the one I use as its easier than remembering to put the line at the top of each file and then commenting it out when you want to edit it etc, this method runs the PowerCLI Console file before it runs your script.
A PowerShell Console file is a xml like file containing information on what snapins to load when PowerShell is started.
This will enable the snapin for you and there is nothing to ad to the scripts.
The run command then looks like this:
C:\WINDOWS\system32\windowspowershell\v1.0\powershell.exe -PSConsoleFile “C:\Program Files\VMware\Infrastructure\vSphere PowerCLI\vim.psc1″ ” &  “C:\Script.ps1”
Test both method by running them from a cmd prompt before using it to ensure they work properly

Monday, March 6, 2017

Script for LUN Utilization

Script for LUN Utilization


Get-Datastore |
Select Name,
    @{N='Type';E={"$($_.Type)$($_.ExtensionData.Info.Vmfs.MajorVersion)"}},
    @{N='CapacityGB';E={[math]::Round($_.CapacityGB)}},
    @{N='FreeSpaceGB';E={[math]::Round($_.FreeSpaceGB)}},
    @{N='UsedSpaceGB';E={[math]::Round($_.CapacityGB - $_.FreeSpaceGB,1)}},
    @{N='% of LUN Utilization';E={[math]::Round(($_.CapacityGB - $_.FreeSpaceGB)/$_.CapacityGB * 100,1)}} |
Export-Csv   c:\datstoreusage.csv  -NoTypeInformation -UseCulture
